TUGAS BAHASA PEMROGRAMAN II - Chapter 1
=============================================================================================
TUGAS
BAHASA PEMROGRAMAN II
(Membuat Aplikasi Java J2ME RMS PhoneBook )
Disusun Oleh:
Nama : Usman JayusMan
Kelas: TI 2018 A
NIM: 20180810096
FAKULTAS ILMU KOMPUTER
UNIVERSITAS KUNINGAN
2019
=============================================================================================
- Membuat PhoneBook / Buku Telepon dengan Metode RMS .
RMS Phonebook ini adalah Sebuah aplikasi J2ME yang sudah support CRUD (Create Read Update Delete) kontak di buku telepon menggunakan RMS. Dalam program ini, kita dapat menyimpan kontak, memperbarui kontak, menghapus kontak, dan menemukan kontak di record store. Di sini saya menggunakan Netbeans untuk membuat aplikasinya.
- Langkah - Langkah membuat PhoneBook dengan Metode RMS :
1. Buatlah sebuah project J2ME pada Netbeans .
2. Buatlah sebuah class baru dan beri nama Comparator.
Kemudian masukkan Souce code berikut:
import java.io.*;
import javax.microedition.rms.RecordComparator;
public class Comparator implements RecordComparator {
private
byte[] comparatorInputData = new byte[300];
private
ByteArrayInputStream comparatorInputStream = null;
private
DataInputStream comparatorInputDataType = null;
public int
compare(byte[] record1, byte[] record2) {
int
record1int, record2int;
try {
comparatorInputStream = new ByteArrayInputStream(record1);
comparatorInputDataType = new DataInputStream(comparatorInputStream);
String data1 = comparatorInputDataType.readUTF();
comparatorInputStream = new ByteArrayInputStream(record2);
comparatorInputDataType = new DataInputStream(comparatorInputStream);
String data2 =
comparatorInputDataType.readUTF();
int
comparison = data1.compareTo(data2);
if
(comparison == 0) {
return RecordComparator.EQUIVALENT;
}
else if (comparison < 0) {
return
RecordComparator.PRECEDES;
}
else {
return RecordComparator.FOLLOWS;
}
} catch
(Exception error) {
return RecordComparator.EQUIVALENT;
}
}
public void
compareClose() {
try {
if
(comparatorInputStream != null) {
comparatorInputStream.close();
}
if
(comparatorInputDataType != null) {
comparatorInputDataType.close();
}
} catch
(Exception error) {
}
}
}
3. Kemudian buat class baru lagi dan beri
nama Filter. Class ini digunakan untuk proses mem-filter pencarian kontak.
Fungsi pencarian ini dapat menggunakan satu atau lebih keyword kata. Berikut
ini kode untuk Filter.java:
import
java.io.ByteArrayInputStream;
import
java.io.DataInputStream;
import
javax.microedition.rms.RecordFilter;
public class Filter
implements RecordFilter {
private String search = null;
private ByteArrayInputStream inputstream =
null;
private DataInputStream datainputstream =
null;
public Filter(String search) {
this.search = search.toLowerCase();
}
public boolean matches(byte[] suspect) {
String string = new
String(suspect).toLowerCase();
if (string != null &&
string.indexOf(search) != -1) {
return true;
} else {
return false;
}
}
public void filterClose() {
try {
if (inputstream != null) {
inputstream.close();
}
if (datainputstream != null) {
datainputstream.close();
}
} catch (Exception error) {
}
}
}
4. Tahap terakhir, buatlah sebuah MIDlet baru dan beri
nama RMSPhonebook. Berikut codenya:
import javax.microedition.rms.*;
import javax.microedition.midlet.*;
import javax.microedition.lcdui.*;
import java.io.*;
public class RMSPhonebook extends MIDlet implements
CommandListener {
private
Display display;
private
Alert alert;
private Form
formMain, formNewContact, formView, formEdit, formSearch;
private List
list;
private
RecordStore recordstore = null;
private
RecordEnumeration recordEnumeration = null;
private
Filter filter = null;
Command
cmdExit = new Command("Exit", Command.EXIT, 1);
Command
cmdViewList = new Command("Contacts", Command.SCREEN, 1);
Command
cmdNewContact = new Command("Add New Contact", Command.SCREEN, 1);
Command
cmdEdit = new Command("Edit Contact", Command.SCREEN, 1);
Command
cmdDelete = new Command("Delete Contact", Command.SCREEN, 1);
Command
cmdFind = new Command("Find Contact", Command.SCREEN, 1);
Command
cmdSearch = new Command("Search", Command.SCREEN, 1);
Command
cmdSave = new Command("Save", Command.SCREEN, 1);
Command
cmdUpdate = new Command("Update", Command.SCREEN, 1);
Command
cmdCancel = new Command("Cancel", Command.BACK, 1);
Command
cmdBack = new Command("Back", Command.BACK, 1);
TextField
txtName = new TextField("Name:", "", 20, TextField.ANY);
TextField
txtAddress = new TextField("Address:", "", 20,
TextField.ANY);
TextField
txtHomeNumber = new TextField("Home Number:", "", 20,
TextField.PHONENUMBER);
TextField
txtMobileNumber = new TextField("Mobile Number:", "", 20,
TextField.PHONENUMBER);
TextField
txtRecName, txtRecAddress, txtRecHomeNumber, txtRecMobileNumber;
TextField
txtFind = new TextField("Search Contact:", "", 20,
TextField.ANY);
int recID,
currentTask;
String
keyword;
public
RMSPhonebook() {
formMain
= new Form("RMS Phonebook");
try {
Image img =
Image.createImage("/dhafiqsagara.png");
ImageItem image = new ImageItem("\n\n\n\n", img,
Item.LAYOUT_CENTER, "List Phonebook");
formMain.append(image);
} catch
(Exception e) {
e.printStackTrace();
}
formMain.addCommand(cmdViewList);
formMain.addCommand(cmdExit);
formMain.setCommandListener(this);
//Add
New Form
formNewContact
= new Form("Add New Contact");
formNewContact.addCommand(cmdBack);
formNewContact.addCommand(cmdSave);
formNewContact.append(txtName);
formNewContact.append(txtAddress);
formNewContact.append(txtHomeNumber);
formNewContact.append(txtMobileNumber);
formNewContact.setCommandListener(this);
formSearch = new Form("Search Name of Phonebook");
formSearch.addCommand(cmdBack);
formSearch.addCommand(cmdSearch);
formSearch.append(txtFind);
formSearch.setCommandListener(this);
}
public void
startApp() {
if
(display == null) {
display = Display.getDisplay(this);
display.setCurrent(formMain);
}
}
public void
pauseApp() {
}
public void
destroyApp(boolean unconditional) {
}
public void
commandAction(Command c, Displayable d) {
//trying
to open a RecordStore if existing, and if not create it
try {
recordstore = RecordStore.openRecordStore("phonebookRS",
true);
} catch
(Exception error) {
alert = new Alert("Error Creating", error.toString(), null,
AlertType.WARNING);
alert.setTimeout(Alert.FOREVER);
display.setCurrent(alert);
}
//for
exit command, just destroying the applications
if (c ==
cmdExit) {
destroyApp(true);
notifyDestroyed();
}
//for
back command, setting display to the mainForm
if (c ==
cmdBack) {
display.setCurrent(list);
}
//for
cancel command, setting display to the mainForm
if (c ==
cmdCancel) {
display.setCurrent(formMain);
}
//for
displaying new contact form
if (c ==
cmdNewContact) {
txtName.setString("");
txtAddress.setString("");
txtHomeNumber.setString("");
txtMobileNumber.setString("");
display.setCurrent(formNewContact);
}
//for
displaying search form
if (c ==
cmdFind) {
txtFind.setString("");
display.setCurrent(formSearch);
}
//for
searching
if (c ==
cmdSearch) {
keyword = txtFind.getString();
try
{

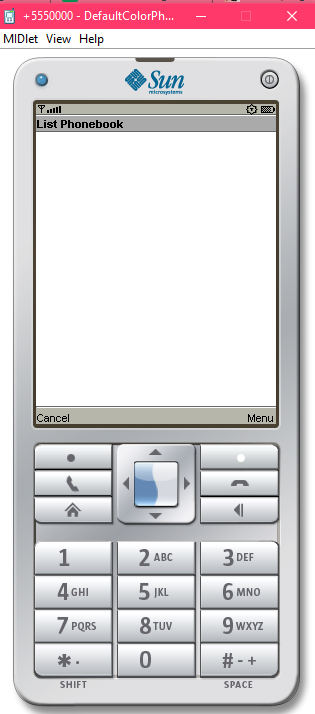

list = new List("List Phonebook", List.IMPLICIT);
list.addCommand(cmdNewContact);
list.addCommand(cmdFind);
list.addCommand(cmdCancel);
list.setCommandListener(this);
currentTask = 1;
String inputName = null;
byte[] byteInputData = new byte[300];
ByteArrayInputStream inputStream = new
ByteArrayInputStream(byteInputData);
DataInputStream inputDataStream = new DataInputStream(inputStream);
if (recordstore.getNumRecords() > 0) {
filter = new Filter(keyword);
recordEnumeration = recordstore.enumerateRecords(filter, null, false);
while (recordEnumeration.hasNextElement()) {
recordstore.getRecord(recordEnumeration.nextRecordId(), byteInputData,
0);
inputName = inputDataStream.readUTF();
list.append(inputName + "", null);
inputStream.reset();
}
}
display.setCurrent(list);
inputStream.close();
}
catch (Exception error) {
alert = new Alert("Error Reading",
error.toString(), null, AlertType.WARNING);
alert.setTimeout(Alert.FOREVER);
display.setCurrent(alert);
}
}
//for
saving new contact
if (c ==
cmdSave) {
try
{
String outputName = txtName.getString();
String
outputAddress = txtAddress.getString();
String outputHomeNumber = txtHomeNumber.getString();
String outputMobileNumber = txtMobileNumber.getString();
byte[] outputRecord;
ByteArrayOutputStream outputStream = new ByteArrayOutputStream();
DataOutputStream outputDataStream = new DataOutputStream(outputStream);
outputDataStream.writeUTF(outputName);
outputDataStream.writeUTF(outputAddress);
outputDataStream.writeUTF(outputHomeNumber);
outputDataStream.writeUTF(outputMobileNumber);
outputDataStream.flush();
outputRecord = outputStream.toByteArray();
recordstore.addRecord(outputRecord, 0, outputRecord.length);
outputStream.reset();
outputStream.close();
outputDataStream.close();
display.setCurrent(formMain);
}
catch (Exception error) {
display.setCurrent(alert);
}
}
//for
updating contact entries
if (c ==
cmdUpdate) {
try
{
String outputName = txtRecName.getString();
String
outputAddress = txtRecAddress.getString();
String outputHomeNumber = txtRecHomeNumber.getString();
String outputMobileNumber = txtRecMobileNumber.getString();
byte[] outputRecord;
ByteArrayOutputStream outputStream = new ByteArrayOutputStream();
DataOutputStream outputDataStream = new DataOutputStream(outputStream);
outputDataStream.writeUTF(outputName);
outputDataStream.writeUTF(outputAddress);
outputDataStream.writeUTF(outputHomeNumber);
outputDataStream.writeUTF(outputMobileNumber);
outputDataStream.flush();
outputRecord = outputStream.toByteArray();
recordstore.setRecord(recID, outputRecord, 0, outputRecord.length);
outputStream.reset();
outputStream.close();
outputDataStream.close();
display.setCurrent(formMain);
}
catch (Exception error) {
alert = new Alert("Error Writing", error.toString(), null,
AlertType.WARNING);
alert.setTimeout(Alert.FOREVER);
display.setCurrent(alert);
}
}
//for
editing contact
if (c ==
cmdEdit) {
int
index = 1 + list.getSelectedIndex();
try
{
formEdit = new Form("Edit Contact Details");
formEdit.addCommand(cmdBack);
formEdit.addCommand(cmdUpdate);
formEdit.setCommandListener(this);
byte[] byteInputData = new byte[300];
String inputName, inputAddress, inputHomeNumber, inputMobileNumber =
null;
ByteArrayInputStream inputStream = new
ByteArrayInputStream(byteInputData);
DataInputStream inputDataStream = new DataInputStream(inputStream);
if (currentTask == 1) {
filter = new Filter(keyword);
recordEnumeration = recordstore.enumerateRecords(filter, null, false);
}
if (currentTask == 2) {
Comparator comparator = new Comparator();
recordEnumeration = recordstore.enumerateRecords(null, comparator,
false);
}
for (int i = 1; i <= recordEnumeration.numRecords(); i++) {
int datapointer = recordEnumeration.nextRecordId();
if (i == index) {
recordstore.getRecord(datapointer, byteInputData, 0);
recID = datapointer;
inputName = inputDataStream.readUTF();
inputAddress = inputDataStream.readUTF();
inputHomeNumber = inputDataStream.readUTF();
inputMobileNumber = inputDataStream.readUTF();
txtRecName = new TextField("Name:", inputName, 20,
TextField.ANY);
txtRecAddress = new TextField("Address:", inputAddress, 20,
TextField.ANY);
txtRecHomeNumber = new TextField("Home Number:",
inputHomeNumber, 20, TextField.PHONENUMBER);
txtRecMobileNumber = new
TextField("Mobile Number:", inputMobileNumber, 20,
TextField.PHONENUMBER);
formEdit.append(txtRecName);
formEdit.append(txtRecAddress);
formEdit.append(txtRecHomeNumber);
formEdit.append(txtRecMobileNumber);
inputStream.reset();
}
}
display.setCurrent(formEdit);
inputStream.close();
} catch (Exception error) {
alert = new Alert("Error Reading", error.toString(), null,
AlertType.WARNING);
alert.setTimeout(Alert.FOREVER);
display.setCurrent(alert);
}
}
if (c ==
cmdDelete) {
int
index = 1 + list.getSelectedIndex();
try
{
if (currentTask == 1) {
filter = new Filter(keyword);
recordEnumeration = recordstore.enumerateRecords(filter, null, false);
}
if (currentTask == 2) {
Comparator comparator = new Comparator();
recordEnumeration = recordstore.enumerateRecords(null, comparator,
false);
}
for (int i = 1; i <= recordEnumeration.numRecords(); i++) {
int datapointer = recordEnumeration.nextRecordId();
if (i == index) {
recordstore.deleteRecord(datapointer);
}
}
display.setCurrent(formMain);
}
catch (Exception error) {
alert = new Alert("Error Reading", error.toString(), null,
AlertType.WARNING);
alert.setTimeout(Alert.FOREVER);
display.setCurrent(alert);
}
}
if (c ==
cmdViewList) {
try
{
list = new List("List Phonebook", List.IMPLICIT);
list.addCommand(cmdNewContact);
list.addCommand(cmdFind);
list.addCommand(cmdCancel);
list.setCommandListener(this);
currentTask = 2;
byte[]
byteInputData = new byte[300];
String inputName, inputAddress, inputHomeNumber, inputMobileNumber =
null;
ByteArrayInputStream inputStream = new
ByteArrayInputStream(byteInputData);
DataInputStream inputDataStream = new DataInputStream(inputStream);
Comparator comparator = new Comparator();
recordEnumeration = recordstore.enumerateRecords(null, comparator,
false);
while (recordEnumeration.hasNextElement()) {
recordstore.getRecord(recordEnumeration.nextRecordId(), byteInputData,
0);
inputName = inputDataStream.readUTF();
inputAddress = inputDataStream.readUTF();
inputHomeNumber = inputDataStream.readUTF();
inputMobileNumber = inputDataStream.readUTF();
list.append(inputName + "", null);
inputStream.reset();
}
display.setCurrent(list);
inputStream.close();
}
catch (Exception error) {
alert = new Alert("Error Reading", error.toString(), null,
AlertType.WARNING);
alert.setTimeout(Alert.FOREVER);
display.setCurrent(alert);
}
}
//for
viewing each contact using the SELECT_COMMAND
if (c ==
List.SELECT_COMMAND) {
int
index = 1 + list.getSelectedIndex();
try
{
formView
= new Form("Contact Details");
formView.addCommand(cmdBack);
formView.addCommand(cmdEdit);
formView.addCommand(cmdDelete);
formView.setCommandListener(this);
byte[] byteInputData = new byte[300];
String inputName, inputAddress, inputHomeNumber, inputMobileNumber =
null;
ByteArrayInputStream inputStream = new
ByteArrayInputStream(byteInputData);
DataInputStream inputDataStream = new DataInputStream(inputStream);
if (currentTask == 1) {
filter = new Filter(keyword);
recordEnumeration = recordstore.enumerateRecords(filter, null, false);
}
if (currentTask == 2) {
Comparator comparator = new Comparator();
recordEnumeration = recordstore.enumerateRecords(null, comparator,
false);
}
for (int i = 1; i <= recordEnumeration.numRecords(); i++) {
int datapointer = recordEnumeration.nextRecordId();
if (i == index) {
recordstore.getRecord(datapointer, byteInputData, 0);
recID = datapointer;
inputName =
inputDataStream.readUTF();
inputAddress = inputDataStream.readUTF();
inputHomeNumber = inputDataStream.readUTF();
inputMobileNumber = inputDataStream.readUTF();
StringItem stringName = new StringItem("Name: ", inputName,
Item.PLAIN);
StringItem stringAddress = new StringItem("Address: ",
inputAddress, Item.PLAIN);
StringItem stringHomeNumber = new StringItem("Home Number: ",
inputHomeNumber, Item.PLAIN);
StringItem stringMobileNumber = new StringItem("Mobile Number:
", inputMobileNumber, Item.PLAIN);
formView.append(stringName);
formView.append(stringAddress);
formView.append(stringHomeNumber);
formView.append(stringMobileNumber);
inputStream.reset();
}
}
display.setCurrent(formView);
inputStream.close();
}
catch (Exception error) {
alert = new Alert("Error Reading", error.toString(), null,
AlertType.WARNING);
alert.setTimeout(Alert.FOREVER);
display.setCurrent(alert);
}
}
try {
recordstore.closeRecordStore();
} catch
(Exception error) {
alert
= new Alert("Error Closing", error.toString(), null,
AlertType.WARNING);
alert.setTimeout(Alert.FOREVER);
display.setCurrent(alert);
}
}
}
- Selanjutnya akan muncul sebuah emulator hp java , selanjutnya kita klik saja tombol dibawah launch .
- selanjutnya akan ada tampilan seperti di bawah ini :
- Selanjutnya kita klik contact dan akan muncul seperti di bawah ini :
- Selanjutnya kita klik menu :
- Disini terdapat Dua pilihan menu yah :
1 . Add new contact : menu pilihan yg diguakan untuk menambahkan contact baru .
2. Find contact : menu yang digunakan untuk mencari kontaj yg teah kita buat .
- kita klik dan pilih Add new contact dan masukan perintah selanjutntya :
- Isi data sesuai data anda oke . selanjunya kita klik save untuk menyimanya lakukan hal yg sama untuk menambahkan contact yg lianya .
- selanjutnya untuk menu pilihan find contact adalah sebagai berikut :
klik menu , dan pilih find contact :
hasilnya adalah sebagai berikut :
klick search :
- selanjutnya untuk menghapus contact dengan cara berikut :
- kita klik contact yang akan kita delete .
- lalu pilih dan klik delete contact .
- disini juga kita bisa edit contact yah .
- Selesai .
- program ini dibuat dengan masih mempelajari dasar dasar pada java me , mohon maaf jika masih ada kekukranagan dalam pembuatan nya .
- selanjutnya jika ingin ,mencobanya di rumah klik saja link dowbloadnya di bawah ini :
Untuk Download File nya : CLICK HERE!
-Terima kasih :) .
Komentar
Posting Komentar
